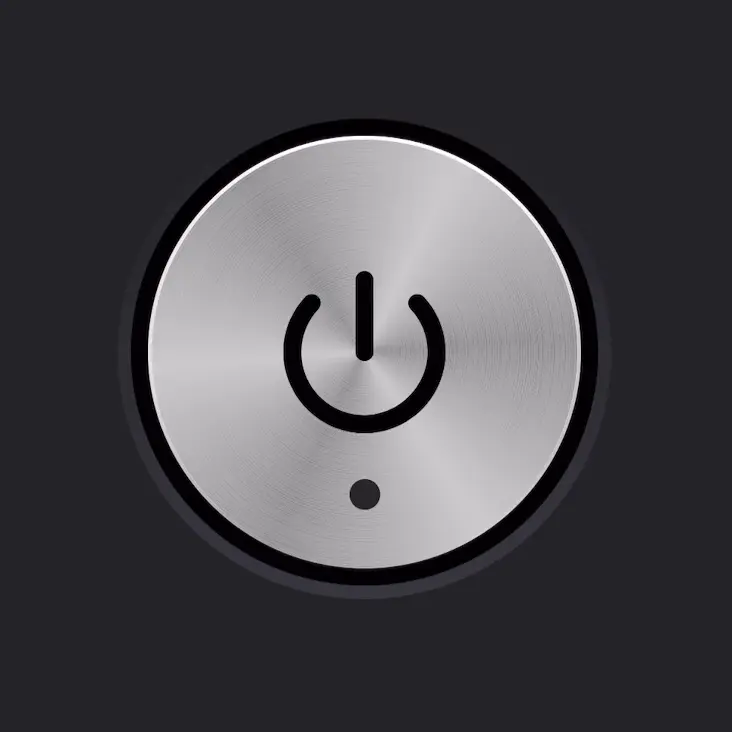

Metal Power Button
Code
import androidx.compose.animation.core.Spring
import androidx.compose.animation.core.animateFloatAsState
import androidx.compose.animation.core.spring
import androidx.compose.foundation.background
import androidx.compose.foundation.border
import androidx.compose.foundation.gestures.detectTapGestures
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.layout.size
import androidx.compose.foundation.shape.CircleShape
import androidx.compose.material.Icon
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.BlurredEdgeTreatment
import androidx.compose.ui.draw.blur
import androidx.compose.ui.draw.drawWithContent
import androidx.compose.ui.geometry.Offset
import androidx.compose.ui.graphics.BlendMode
import androidx.compose.ui.graphics.Brush
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.PathFillType.Companion.NonZero
import androidx.compose.ui.graphics.SolidColor
import androidx.compose.ui.graphics.StrokeCap.Companion.Butt
import androidx.compose.ui.graphics.StrokeJoin.Companion.Miter
import androidx.compose.ui.graphics.graphicsLayer
import androidx.compose.ui.graphics.vector.ImageVector
import androidx.compose.ui.graphics.vector.ImageVector.Builder
import androidx.compose.ui.graphics.vector.path
import androidx.compose.ui.input.pointer.PointerEventPass
import androidx.compose.ui.input.pointer.PointerEventType
import androidx.compose.ui.input.pointer.pointerInput
import androidx.compose.ui.layout.onSizeChanged
import androidx.compose.ui.unit.IntSize
import androidx.compose.ui.unit.dp
import androidx.compose.ui.util.lerp
import theme.Colors.Neutral400
import theme.Colors.Zinc700
import util.brushedMetal
import kotlin.math.PI
import kotlin.math.atan2
@Composable
fun MetalPowerButton() {
var isPressed by remember { mutableStateOf(false) }
var poweredOn by remember { mutableStateOf(false) }
val animation by animateFloatAsState(
targetValue = if (isPressed) 1f else 0f,
animationSpec = spring(
stiffness = Spring.StiffnessHigh,
)
)
var angle by remember { mutableStateOf(0f) }
var boundsSize by remember { mutableStateOf(IntSize.Zero) }
if (false)
Box(
Modifier
.onSizeChanged { boundsSize = it }
.pointerInput(Unit) {
awaitPointerEventScope {
while (true) {
val event = awaitPointerEvent(PointerEventPass.Final)
if (event.type == PointerEventType.Move) {
val center = Offset(
boundsSize.width.toFloat() / 2f,
boundsSize.height.toFloat() / 2f
)
val delta = center - event.changes.first().position
angle = (atan2(delta.y, delta.x) * 180 / PI).toFloat() / 3f
}
}
}
}
.padding(12.dp)
.size(1200.dp, 630.dp)
.background(Zinc800),
contentAlignment = Alignment.Center
) {
Box(
Modifier
.pointerInput(Unit) {
detectTapGestures(
onPress = {
isPressed = true
tryAwaitRelease()
isPressed = false
poweredOn = !poweredOn
}
)
}
.border(
width = 4.dp,
shape = CircleShape,
brush = Brush.verticalGradient(
colors = listOf(
Zinc800,
Zinc700,
)
)
)
.drawWithContent {
drawContent()
drawCircle(
brush = Brush.radialGradient(
colors = listOf(
Color.Transparent,
Color.Transparent,
Color.Black.copy(alpha = lerp(0f, .9f, animation)),
),
center = Offset(size.width * .5f, size.height * .65f),
radius = lerp(size.width * 2, size.width * .55f, animation)
),
blendMode = BlendMode.Overlay,
)
drawCircle(
brush = Brush.radialGradient(
colors = listOf(
Color.Transparent,
Color.Transparent,
Color.Black.copy(alpha = lerp(0f, .2f, animation)),
),
center = Offset(size.width * .5f, size.height * .65f),
radius = lerp(size.width * 2, size.width * .55f, animation)
),
)
}
.background(Color.Black, CircleShape)
.padding(9.dp)
.size(128.dp)
.graphicsLayer {
val scale = lerp(1f, .95f, animation)
scaleX = scale
scaleY = scale
}
.brushedMetal(
baseColor = Neutral400,
shape = CircleShape,
highlightAlpha = .99f,
ringAlpha = .6f,
highlightRotation = angle
)
.border(
width = 1.dp,
shape = CircleShape,
brush = Brush.verticalGradient(
colors = listOf(
Color.White,
Color.Transparent,
)
)
),
contentAlignment = Alignment.Center
) {
Icon(
imageVector = PowerSettingsIcon,
contentDescription = null,
modifier = Modifier.size(64.dp)
)
Box(
Modifier
.padding(top = 84.dp)
.size(9.dp)
.background(
color = Color(0xFF2C2C2C),
shape = CircleShape,
)
) {
if (poweredOn) {
Box(
Modifier
.align(Alignment.Center)
.size(4.dp)
.background(
Color.Green,
shape = CircleShape
)
)
Box(
Modifier
.blur(8.dp, BlurredEdgeTreatment.Unbounded)
.align(Alignment.Center)
.size(12.dp)
.background(
Color.Green,
shape = CircleShape
)
)
}
}
}
}
}
val PowerSettingsIcon: ImageVector
get() {
if (_powerSettingsIcon != null) {
return _powerSettingsIcon!!
}
_powerSettingsIcon = Builder(name = "Power settings icon", defaultWidth = 24.0.dp,
defaultHeight = 24.0.dp, viewportWidth = 24.0f, viewportHeight = 24.0f).apply {
path(fill = SolidColor(Color(0xFFe8eaed)), stroke = null, strokeLineWidth = 0.0f,
strokeLineCap = Butt, strokeLineJoin = Miter, strokeLineMiter = 4.0f,
pathFillType = NonZero) {
moveTo(12.0f, 3.0f)
curveToRelative(-0.55f, 0.0f, -1.0f, 0.45f, -1.0f, 1.0f)
verticalLineToRelative(8.0f)
curveToRelative(0.0f, 0.55f, 0.45f, 1.0f, 1.0f, 1.0f)
reflectiveCurveToRelative(1.0f, -0.45f, 1.0f, -1.0f)
lineTo(13.0f, 4.0f)
curveToRelative(0.0f, -0.55f, -0.45f, -1.0f, -1.0f, -1.0f)
close()
moveTo(17.14f, 5.86f)
curveToRelative(-0.39f, 0.39f, -0.38f, 1.0f, -0.01f, 1.39f)
curveToRelative(1.13f, 1.2f, 1.83f, 2.8f, 1.87f, 4.57f)
curveToRelative(0.09f, 3.83f, -3.08f, 7.13f, -6.91f, 7.17f)
curveTo(8.18f, 19.05f, 5.0f, 15.9f, 5.0f, 12.0f)
curveToRelative(0.0f, -1.84f, 0.71f, -3.51f, 1.87f, -4.76f)
curveToRelative(0.37f, -0.39f, 0.37f, -1.0f, -0.01f, -1.38f)
curveToRelative(-0.4f, -0.4f, -1.05f, -0.39f, -1.43f, 0.02f)
curveTo(3.98f, 7.42f, 3.07f, 9.47f, 3.0f, 11.74f)
curveToRelative(-0.14f, 4.88f, 3.83f, 9.1f, 8.71f, 9.25f)
curveToRelative(5.1f, 0.16f, 9.29f, -3.93f, 9.29f, -9.0f)
curveToRelative(0.0f, -2.37f, -0.92f, -4.51f, -2.42f, -6.11f)
curveToRelative(-0.38f, -0.41f, -1.04f, -0.42f, -1.44f, -0.02f)
close()
}
}
.build()
return _powerSettingsIcon!!
}
private var _powerSettingsIcon: ImageVector? = nullModifier code:
import androidx.compose.runtime.Composable
import androidx.compose.runtime.remember
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.drawWithCache
import androidx.compose.ui.geometry.Offset
import androidx.compose.ui.graphics.BlendMode
import androidx.compose.ui.graphics.Brush
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.Path
import androidx.compose.ui.graphics.RectangleShape
import androidx.compose.ui.graphics.Shape
import androidx.compose.ui.graphics.TileMode
import androidx.compose.ui.graphics.addOutline
import androidx.compose.ui.graphics.drawscope.clipPath
import androidx.compose.ui.graphics.drawscope.rotate
import androidx.compose.ui.graphics.lerp
import androidx.compose.ui.unit.Density
import kotlin.random.Random
@Composable
fun Modifier.brushedMetal(
baseColor: Color = Color(0xFF9A9A9A),
shape: Shape = RectangleShape,
ringAlpha: Float = .2f,
ringCount: Int = 40,
highlightAlpha: Float = .5f,
highlightCount: Int = 3,
highlightRotation: Float = 0f,
center: Offset = Offset(.5f, .5f),
): Modifier {
val highlightColor = remember(baseColor, highlightAlpha) {
lerp(baseColor, Color.White, .5f).copy(alpha = highlightAlpha)
}
val ringColors = remember(ringCount) {
val ringColor = lerp(baseColor, Color.Black, .5f).copy(alpha = ringAlpha)
buildList {
(0..ringCount).forEach {
(0..Random.nextInt(2, 19)).forEach { add(Color.Transparent) }
(0..Random.nextInt(0, 3)).forEach { add(ringColor) }
}
}
}
return this
.drawWithCache {
val path = Path().apply {
addOutline(
shape.createOutline(size, layoutDirection, Density(density))
)
}
onDrawBehind {
clipPath(path) {
val center = Offset(center.x * size.width, center.y * size.height)
drawRect(color = baseColor)
drawRect(
brush = Brush.radialGradient(
colors = ringColors,
tileMode = TileMode.Repeated,
center = center,
radius = size.width * .2f,
),
blendMode = BlendMode.Overlay,
)
rotate(
degrees = highlightRotation,
pivot = center
) {
drawCircle(
brush = Brush.sweepGradient(
colors = buildList {
add(highlightColor)
repeat(highlightCount) {
add(highlightColor.copy(alpha = 0f))
if (it < highlightCount - 1) add(highlightColor)
}
add(highlightColor)
},
center = center
),
radius = size.width * size.height
)
}
}
}
}
}
